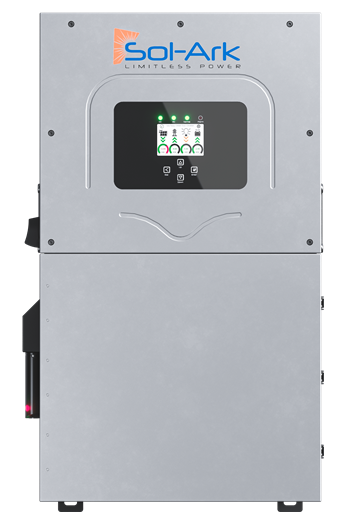

Sol-Ark 12K-2P Hybrid Inverter
$5,631.86
Product Overview
The Sol-Ark 12K is an industry-leading all-in-one hybrid inverter system designed for essential home energy management. Renowned for its reliability and versatility, it goes beyond basic solar energy conversion with rugged construction, comprehensive features, broad battery compatibility, and USA-based technical support backed by a standard 10-year warranty.
Key Features
- 12 kW capacity (13,000W Max Solar)
- 50A Grid Pass-Through
- Parallel stacking (1-9 units)
- 20kW Peak Power
- 4ms UPS transfer time
- 10-year standard warranty
Battery Compatibility
Compatible with leading battery systems:
- • Briggs & Stratton SimpliPhi (LiFePO4)
- • Discover Energy Systems
- • Pytes
- • HomeGrid
- • Renon
- • Storz Power
- • EndurEnergy
Technical Specifications
Input Data
- Max PV DC Capacity: 13,000W
- Voltage Range: 175-425V
- Max DC Voltage: 500V
- Number of MPPT: 2
- Max Input Current: 20A
Output Data (AC)
- Voltage: 120/240/208V
- Peak Efficiency: 97.5%
- Continuous: 9000W
- Off-Grid: 8000W
Battery Input
- Nominal: 48V
- Capacity: 50-9900Ah
- Types: Lithium/Lead Acid
- Charging: 96% efficiency
Sol-Ark 12K with SA-EMP Protection
$7,564.02
Includes indirect lightning, solar flare, and EMP hardening kit with suppressors for solar panels and 20 appliance suppressors.

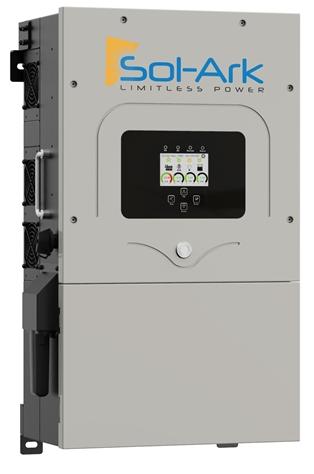

Sol-Ark 15K-2P Hybrid Inverter
$7,181.60
Product Overview
The Sol-Ark 15K is an industry-leading all-in-one hybrid inverter system designed for comprehensive home energy management. With its superior power output, reliability, and versatility, it's the ideal solution for whole-home backup or small commercial installations.
Key Features
- 15 kW capacity (19,500W max solar)
- 200A grid pass-through - whole home backup
- Parallel stacking (1-12 units)
- 24kW surge (10 sec) / 30kW (100ms)
- Touch screen LCD display
- EV charging compatible
- Two-wire generator start
Touch Screen Display Features
- • Real-time power flow visualization
- • Solar production and battery state
- • Performance metrics and savings
- • System configuration controls
- • Alerts and notifications
- • Mode selection (grid-tied/off-grid)
- • Historical data and trends
- • Network configuration
Technical Specifications
Input Data
- Max PV DC Capacity: 19,500W
- MPPT Range: 125-425V
- Max DC Voltage: 500V@26A
- Number of MPPT: 3
- Max AC Coupled: 19,200W
Output Data (AC)
- Voltage: 120/240/208V
- CEC Efficiency: 96.5% (Peak 97.5%)
- From PV: 15,000W
- From Battery: 12,000W
- With Grid: 48,000W 200A
Battery & Physical
- Nominal: 48V (43-63V)
- Capacity: 50-9900Ah
- Charging: 275A / 96% eff
- Size: 31.8" x 18.3" x 10.9"
- Weight: 135 lbs
Certifications
- ✓ UL1741-2010/2018
- ✓ IEEE1547a-2003/2014
- ✓ FCC 15 Class B
- ✓ UL1741SB
- ✓ CA Rule 21 (pending)
- ✓ HECO, PREPA (pending)
About Sol-Ark
Headquartered in Plano, Texas, Sol-Ark is a solar and energy storage technology firm founded in 2013 by U.S. Veterans with expertise in power electronics, semiconductors, and hardware design. Their mission: "Powering Families Through Life™"
Sol-Ark 15K with SA-EMP Protection
$9,918.88
Includes indirect lightning, solar flare, and EMP hardening kit with suppressors for solar panels and 20 appliance suppressors.
